Specification

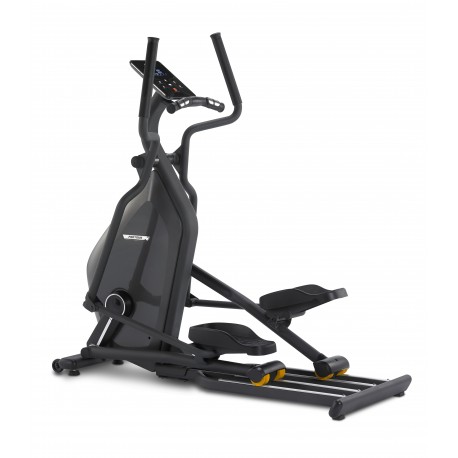

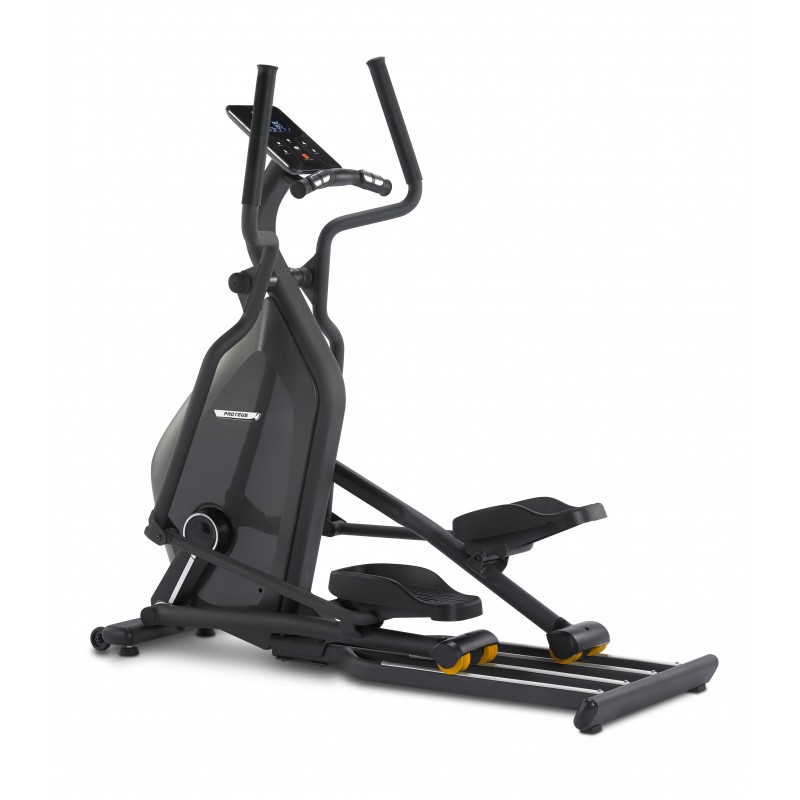

VANTAGE F 5 and F 10
Frame Durable steel frame with rust-resistant,
powder coating
Assembled dimension 153.5 x 71.9 x 150.0 cm
Flywheel 9.7kg
Stride length 20 inch (508 mm)
Resistance Outer Magnetic control
Driving Industrial Poly-V belt
Hub Industrial double sealed bearings
Axle / Crank 3 -piece type
Max user weight 150 kg
N.W / G.W. 74.5 / 79.5 kg
20FT / 40FT 48 / 100 set
FEATURES
- Ergonomics stride :
1. Deluxe non-slip pedals fitting even large size of feet
2. Dual pulleys on each side ; offer silent, stable and smooth strides
3. Full cover on dual pulleys prevents damage from sweat or debris from the top ; efficiently protect aluminum rails during workout
- Visible aluminum rails, easy to clean
- Low step-in pedal, 20cm height above ground, suitable for all age users
- Patented hand pulse reading, pulse sensors cover handlebars guarantee never-losing pulse reading and comfortable grip
- 1.5m machine length makes a perfect space saver
- 6004ZZ bearings equipped
- Front O 62mm moving wheels help moving machines around easier
- Front horizontal adjustment helps stability on uneven surface
- The hardness of surface coating reaches 2H level
- Certificate : CE, comply with EN957 European Standards

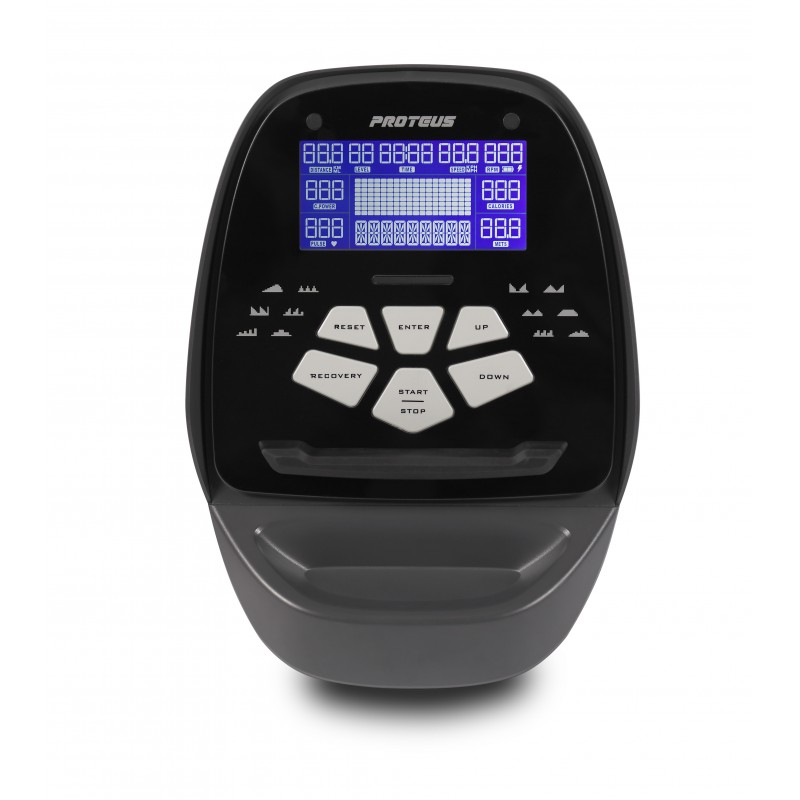

MONITOR F 5
- Auto Tension: 16 levels
- Large LCD 59 x 127 mm,
- All-you-can-read display, w/ backlight
- Functions: Scan / Time / Distance / Speed / Calories / Watt / RPM / Pulse / Level
- 1 Manual / 12 Preset / User / 3 HRC / THR / Watt Control / Body Fat / Recovery
- Time / Distance / Calories / Pulse can be preset for your personal training goal
- Receiver built in and adpater 9 V /0,5 A

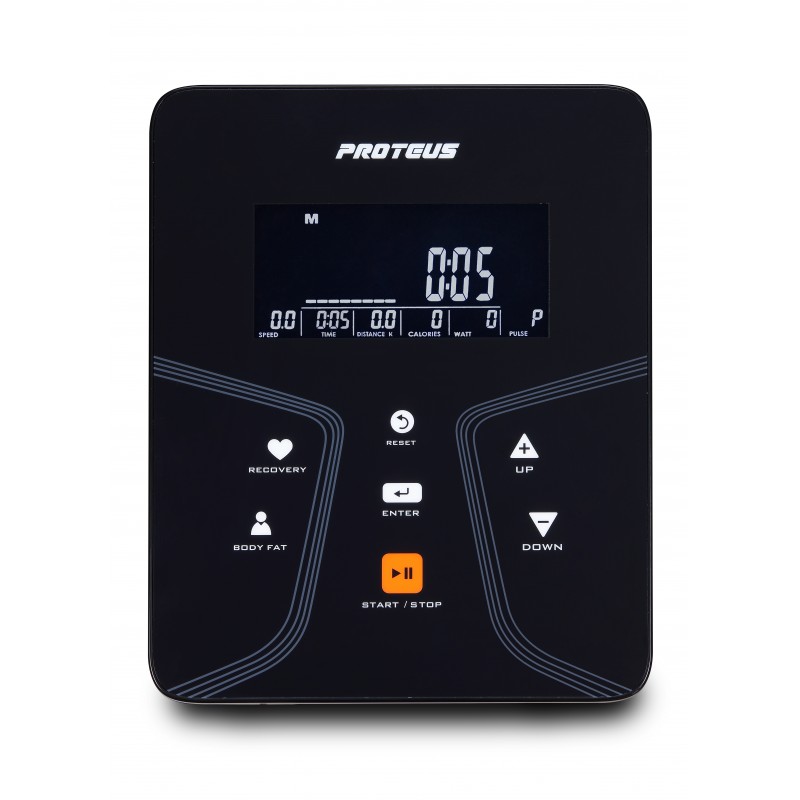

Monitor F 10 Description
- Display: Large LCD 58.5 X 128 mm all-you-can-read display, with backlight
- Tension :16 levels auto tension
- Function: Time, Distance, Speed, Calories, Watt, RPM, Pulse
- Program: 1 manual, 12 preset, 4 user, 3 HRC, THR, Watt control, Body Fat, Recovery
- Preset: Time / Distance / Calories / Pulse can be preset for your personal training goal
- Power: Self-generator built in Compatible transformer：DC 9V / 1A
- Note: Receiver built in
- Application: “HOME FIT” was developed by PROTEUS.
